Anti Microbial Clip In Ceiling
ABOUT PRODUCT
The ANTI MICROBIAL COATING must be mandatory for those areas where micro level bacteria have to be protected, so clip-in ceiling system (Aluminium or Galvanized) can be used with Anti-Microbial coating.
PRODUCT IMPLEMENTATION

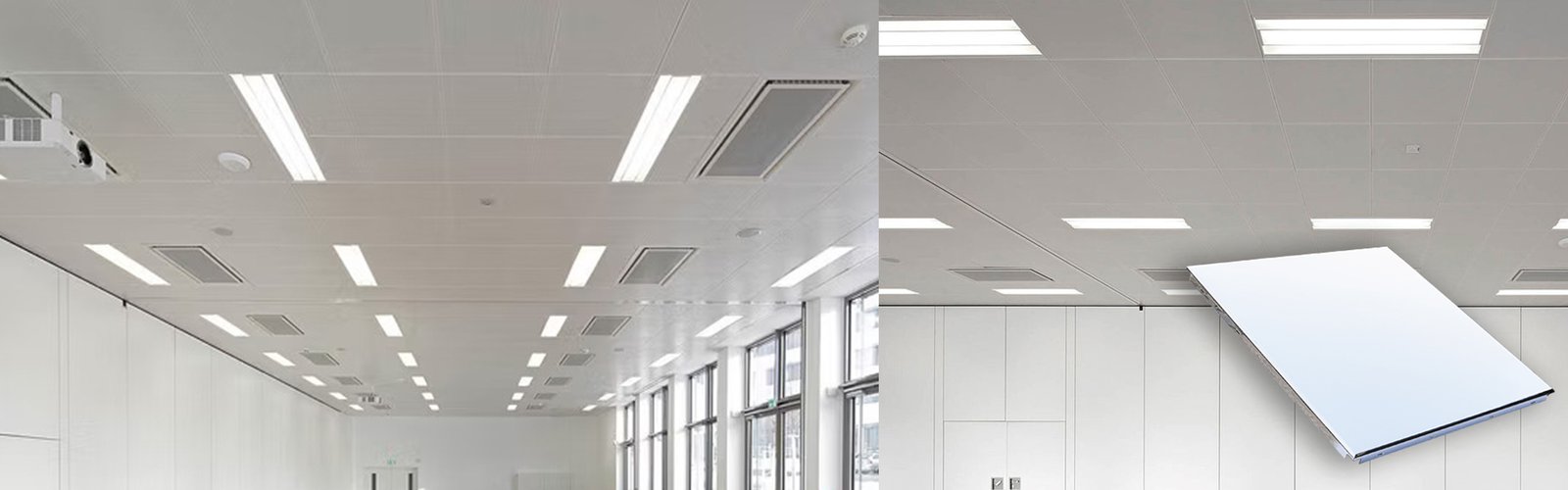

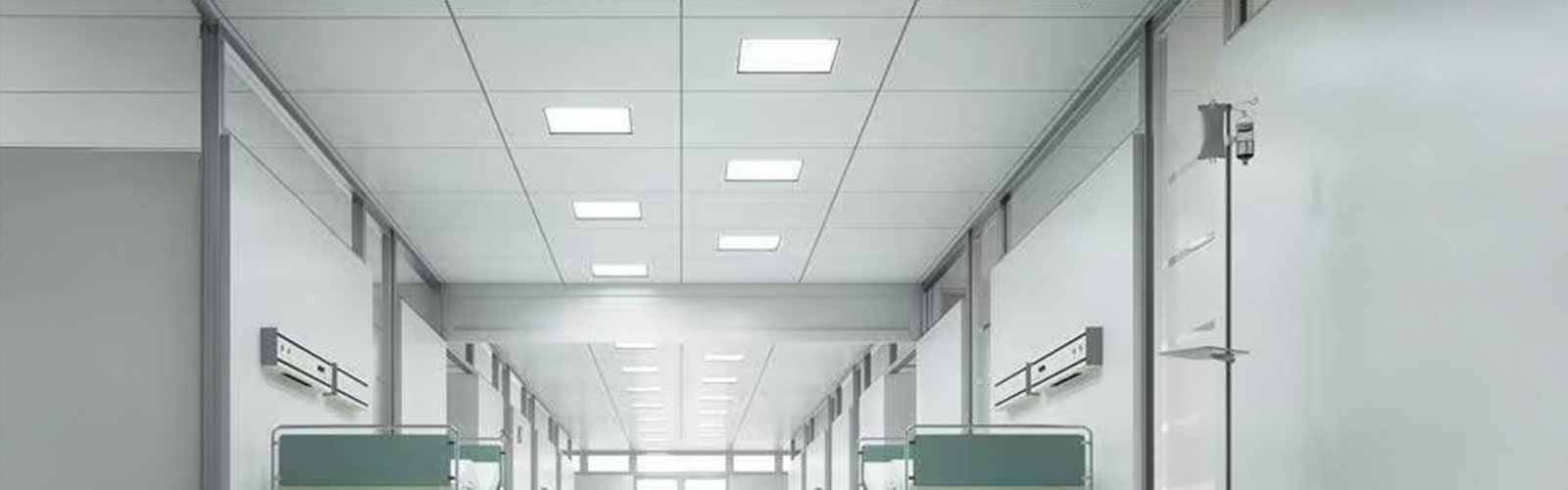

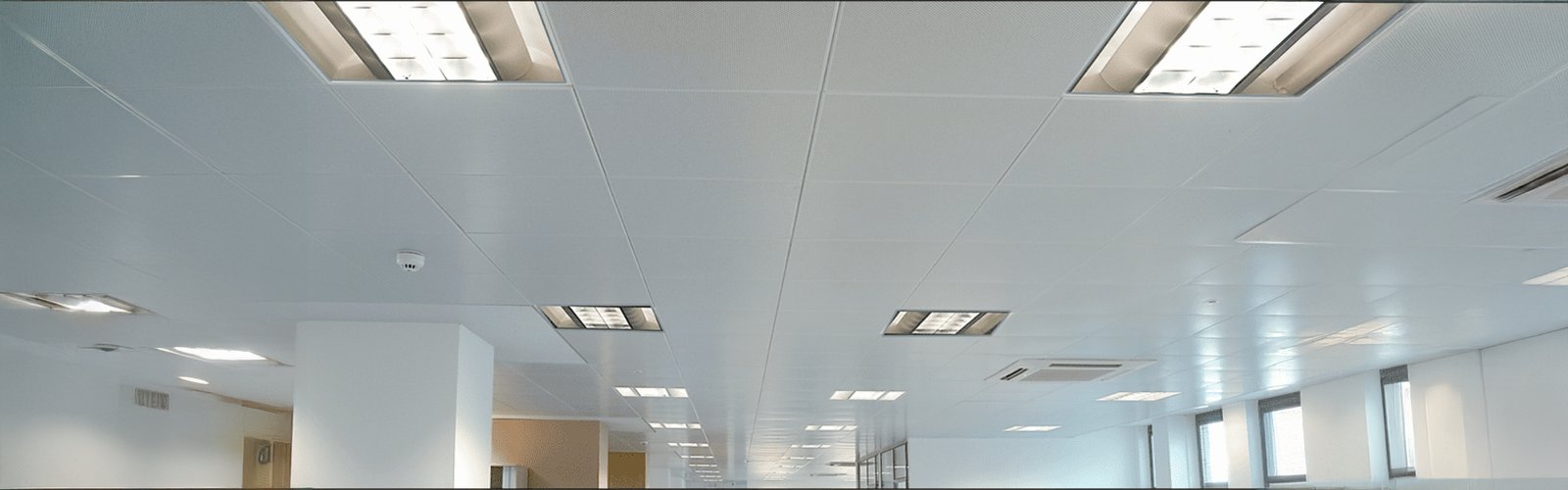

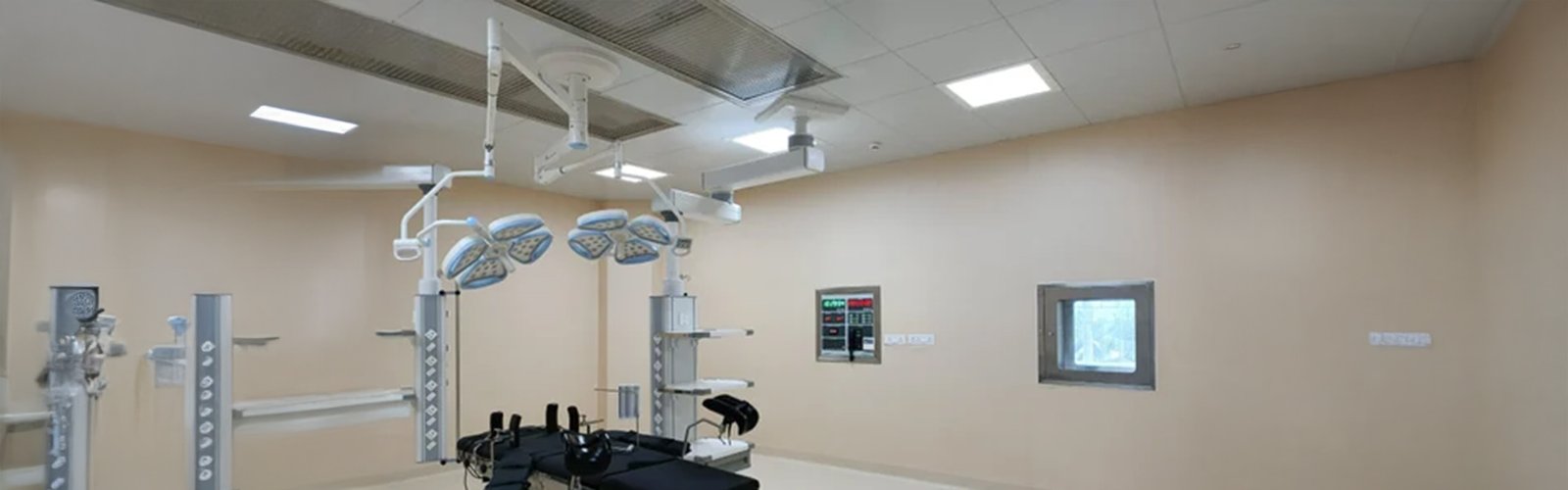

Healthcare areas (Severe & high-risk zones), Emergency rooms in hospitals., ICU & ICCU areas., Pathological Laboratories., Research & Testing areas., Transport Terminals i.e., Airport Terminals, Metro Terminals, Bus Terminals, High-speed corridors etc. Office areas, Gymnasium & sports complexes.
SHORT FORM SPECIFICATION
Special anti-microbial colour coat to inhibit the growth of MRSA & E. coli., Washable & soil resistant surface, Durability-scratch, MAR & abrasive resistance properties., Monolithic appearance with no gaps.
FIRE CLASSIFICATION
Metal Clip-In Galvanized steel (GI) metal ceiling CLASS 0 / CLASS 1, BS 476, PART 6 & 7. Metal Clip-In Aluminium (AL) metal ceiling CLASS 0 / 1, BS 476, PART 6 & 7.
ANTI-MICROBIAL PERFORMANCE
Up to 99.9% reduction in bacterial activity from the surface tested for a range of bacteria mentioned as per MOD ISO22196:2011
| TEST BACTERIUM | % REDUCTION IN 24 HRS |
|---|---|
| E. coli | >=99.99% |
| Bacillus Subtilis | >=99.99% |
| Pseudomonas Aeruginosa | >=99.99% |
| Clostridium Perfringens | >=99.99% |
| Enterococcus Faecalis | >=99.99% |
| Staphylococcus Aureus | >=99.99% |
| Salmonella Enterica | >=99.99% |
| Streptococcus Faecalis | >=99.99% |
| MRSA | >=99.87% |
| Listeria monocytogenes | >=99.99% |
| Salmonella typhimurium | >=99.99% |
| Legionella pneumophila | >=99.99% |
| Enterobacter aerogenes | >=99.99% |
ANTI-FUNGAL PERFORMANCE
No Fungal growth observed on the surface of metal tile plain tested as per ASTM G-21-15
| TEST FUNGI | OBSERVED ON SPECIMEN | RATING |
|---|---|---|
| Aspergillus brasilliensis | None | 0 |
| Penicillium pianophile | None | 0 |
| Candida albicans | None | 0 |
TECHNICAL DETAILS

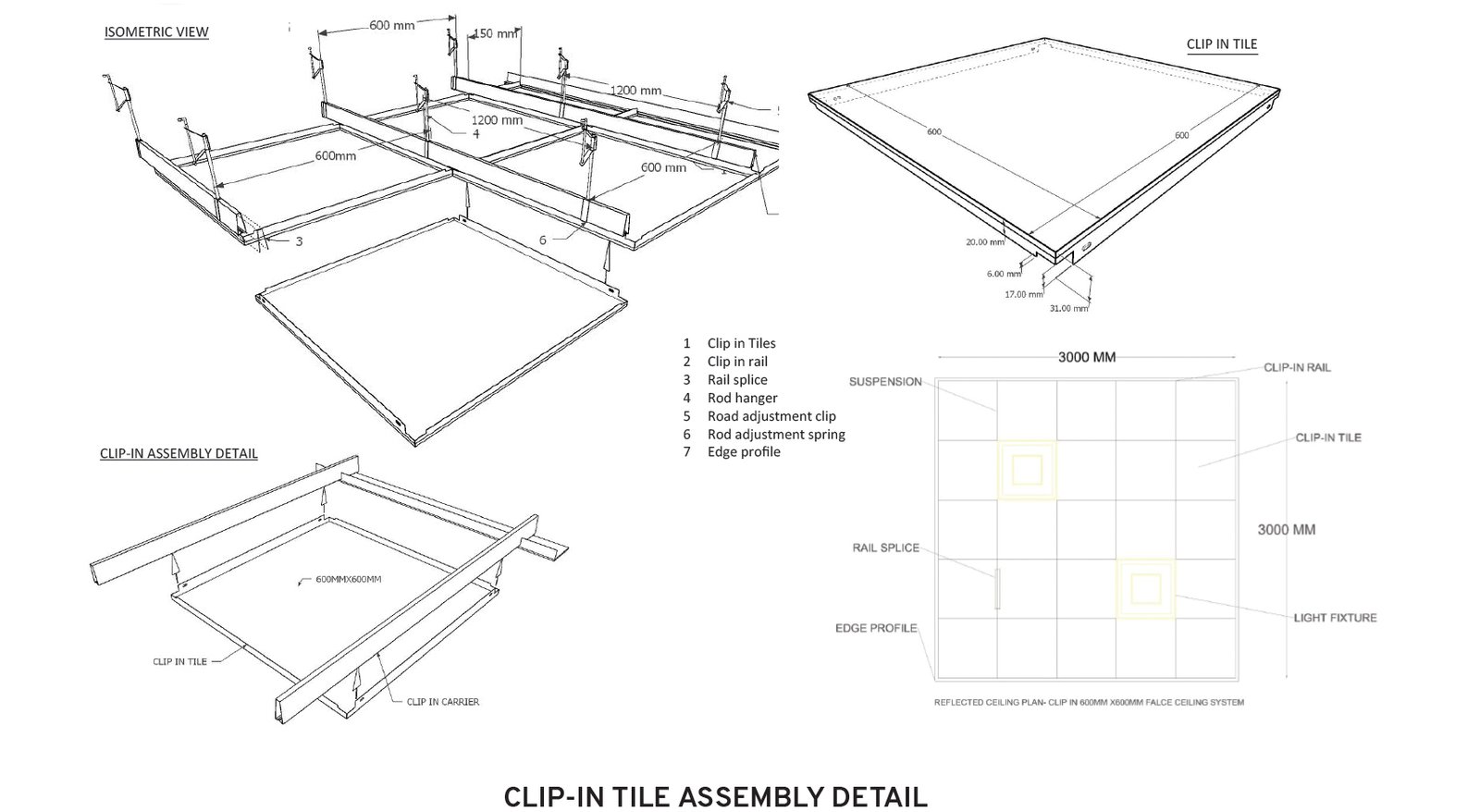

TILES

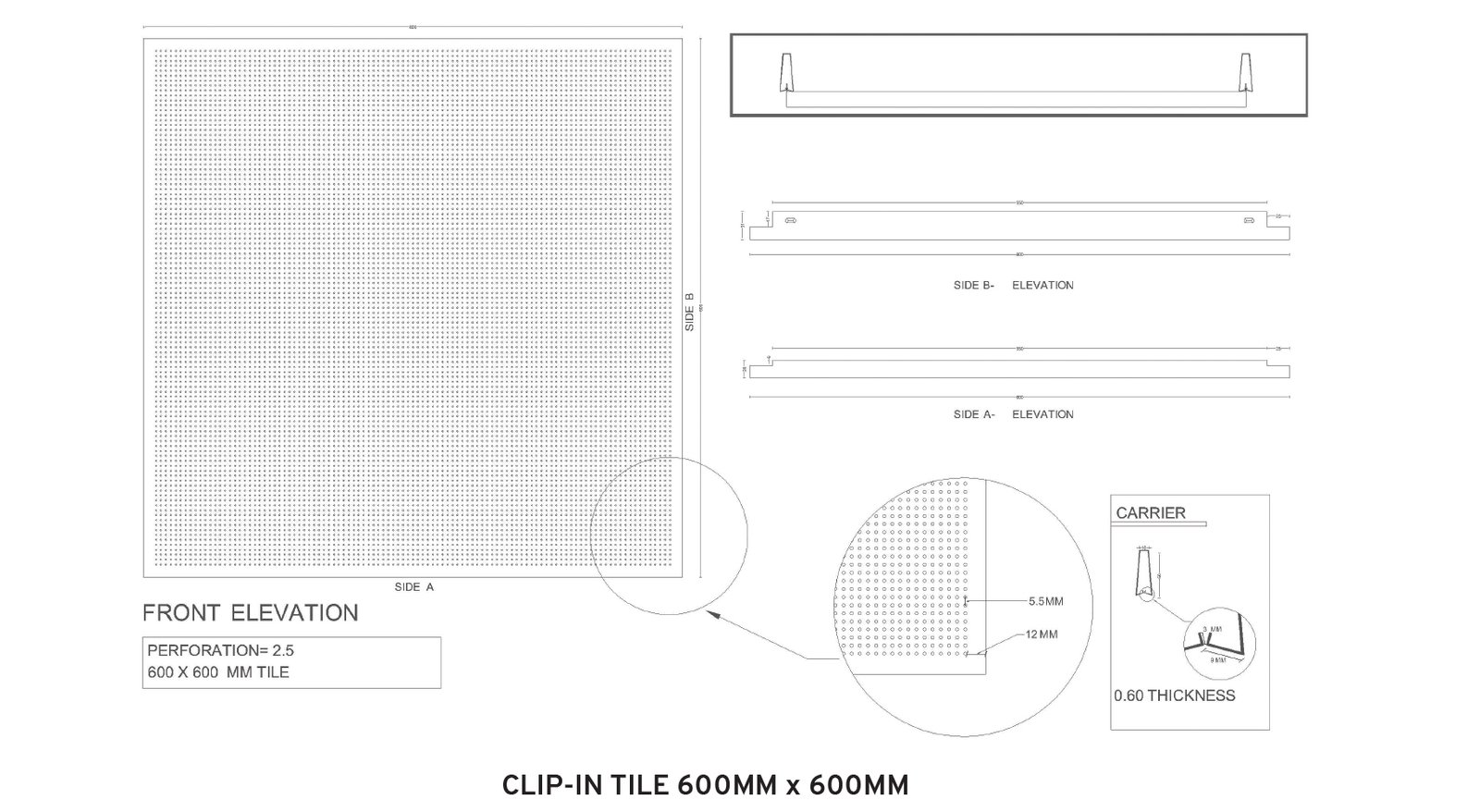

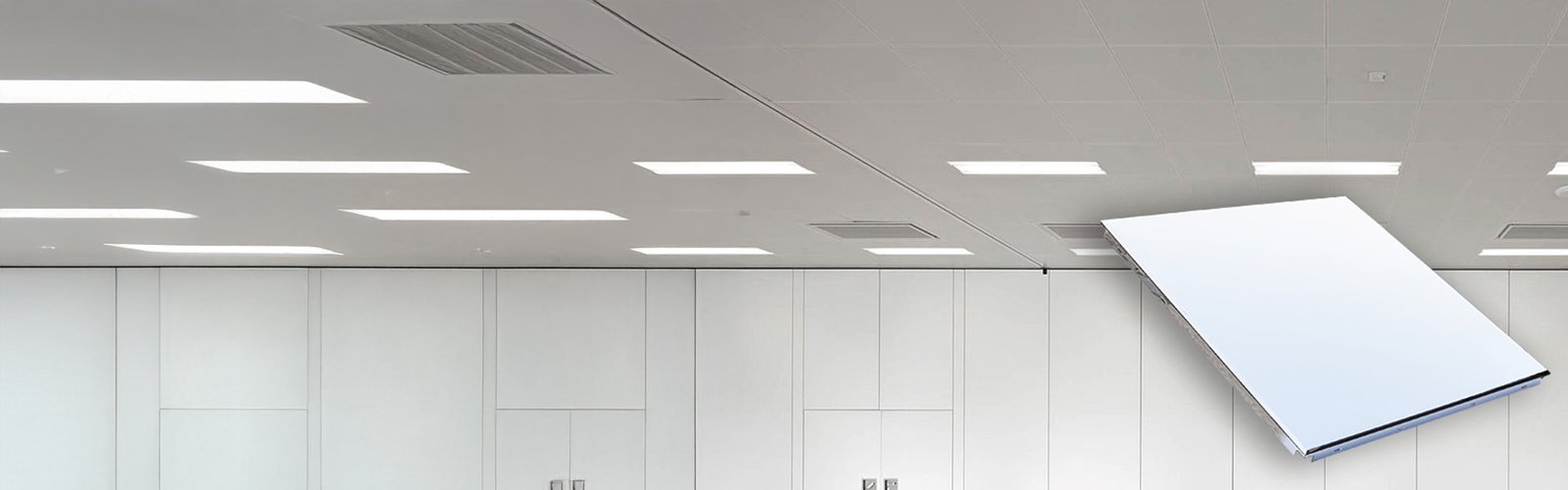

Oculus® Clip-in tiles are available in 0.45mm & 0.5mm thickness in galvanized steel (GI) and 0.65mm & 0.7mm thickness in aluminium (AL). Tiles are available in square edges as well as bevelled edges as per requirement.

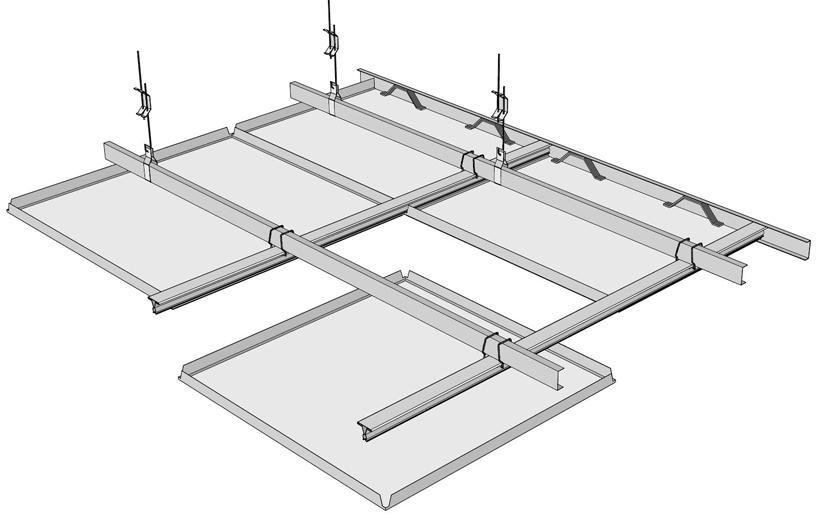

GRID SYSTEM
Clip-in runner made of 0.6mm thick galvanized steel (GI).
POWDER COATING
50-60 microns thick Anti-Microbial colour coating on exposed area & 15-20 microns powder coating on rear side.

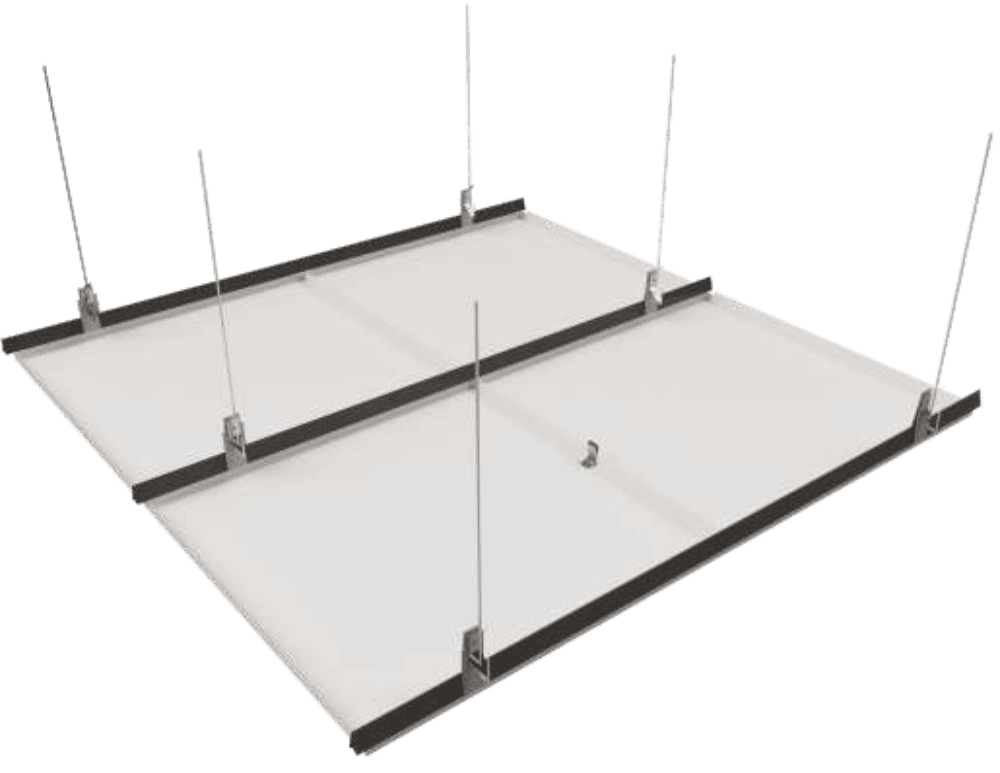

SUSPENSION
4mm dia. GI Rod, Adjustment spring (Butterfly clip), galvanized steel edge profile.
